- Flame Retardancy
Limiting Oxygen Index and Smoke Emission
Figure 3-4-1 shows the Limiting Oxygen Index for comparing flame retardancy with other resins. SUMIKAEXCEL PES is known to have low smoke emission and is even used for parts inside aircrafts. Figure 3-4-2 shows the smoke emission test results by The National Institute of Standards and Technology (NIST) compared with other resins.

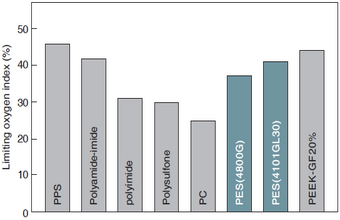

Figure 3-4-1 Limiting Oxygen Index (ASTM D2863)
Figure 3-4-2 Amount of Smoke Emission
Outgas
SUMIKAEXCEL PES generates very little corrosive gas during the molding process, and also causes very little outgassing from the moldings.
Figure 3-4-3 Molding Temperature and Outgas from Moldings
(Dumbbell test pieces molded at each temperature were heated at 120°C for 20 hours, and the outgas was analyzed using head space gas chromatograph.)
UL Standard
The UL 94 flammability standard, established by Underwriters Laboratories Inc. is a system for classifying plastic materials based on their flammability resistance. The UL file number for SUMIKAEXCEL PES is registered as E249884.
Color : Color (ALL : All colors, NC : Natural color, BK : Black color, RD : Red color, WT : White color)
Flame Class : Flammability Class
Relative Thermal Index (RTI) : Temperature index
Hot Wire Ignition (HWI) : Hot wire ignition resistance
High Ampere Arc Resistance (HAI) : High current arc ignition resistance
High Voltage Arc Tracking Rate (HVTR) : High voltage arc tracking rate
D495 : Arc resistance test
Comparative Tracking Index (CTI) : comparative tracking index
PLC : HWI, HAI, HVTR, D495, CTI are indicated by the grade of Performance Level Categories (PLC).
Table 3-4-1 UL Registration Status of SUMIKAEXCEL PES and SUMIPLOY
| Grade | Color | Thickness (mm) |
Flame Class |
HWI | HAI | CTI | HVTR | D495 | RTI | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Elec | Imp | Str | |||||||||
| 3600G | NC | 0.41 | V-0 | 4 | 1 | 4 | 2 | 7 | - | - | - |
| BK | 0.75 | V-0 | 3 | 1 | - | - | - | 180 | 170 | 180 | |
| WT | 1.6 | V-0 | 3 | 1 | - | - | - | 180 | 170 | 180 | |
| NC | 3.0 | V-0 | 2 | 0 | - | - | - | 180 | 170 | 180 | |
| 4100G | ALL | 0.41 | V-0 | 3 | 4 | 3 | 1 | 6 | 180 | 170 | 180 |
| 0.75 | V-0 | 3 | 4 | - | - | - | 180 | 170 | 180 | ||
| 1.5 | V-0 | 2 | 2 | - | - | - | 180 | 170 | 180 | ||
| 3.0 | V-0 | 1 | 2 | - | - | - | 180 | 170 | 180 | ||
| 4800G | ALL | 0.30 | V-1 | - | - | 3 | 1 | 6 | 180 | 170 | 180 |
| 0.46 | V-0 | 3 | 4 | - | - | - | 180 | 170 | 180 | ||
| 1.5 | V-0 | 2 | 2 | - | - | - | 180 | 170 | 180 | ||
| 3.0 | V-0,5VA | 1 | 2 | - | - | - | 180 | 170 | 180 | ||
| 3601GL20 | NC,BK | 0.43 | V-0 | - | - | 4 | 3 | 5 | 180 | 180 | 180 |
| 3.0 | V-0 | 0 | 4 | - | - | - | 180 | 180 | 180 | ||
| 3601GL30 | NC,BK | 0.43 | V-0 | - | - | 4 | 2 | 5 | 190 | 190 | 190 |
| 3.0 | V-0 | 1 | 4 | - | - | - | 190 | 190 | 190 | ||
| 4101GL20 | NC,BK | 0.43 | V-0 | - | - | 4 | 3 | 5 | 180 | 180 | 180 |
| 1.5 | V-0 | 1 | 4 | - | - | - | 180 | 180 | 180 | ||
| 3.0 | V-0 | 0 | 4 | - | - | - | 180 | 180 | 180 | ||
| 4101GL30 | NC,BK | 0.43 | V-0 | - | - | 4 | 3 | 5 | 190 | 190 | 190 |
| 1.5 | V-0 | 1 | 4 | - | - | - | 190 | 190 | 190 | ||
| 3.0 | V-0 | 0 | 4 | - | - | - | 190 | 190 | 190 | ||
| ES5340 | BK | 0.52 | V-0 | - | - | - | - | - | 50 | 50 | 50 |
| NC | 0.81 | V-0 | - | - | - | - | - | 50 | 50 | 50 | |
| NC,BK | 3.0 | V-0 | - | - | - | - | - | 50 | 50 | 50 | |
| E3010 | NC | 0.53 | V-0 | - | - | - | - | - | 130 | 130 | 130 |
| FS2200 | NC,BK | 0.43 | V-0 | - | - | - | - | - | 50 | 50 | 50 |
| CS5530 | NC | 1.5 | V-0 | - | - | - | - | - | 50 | 50 | 50 |
| 3.0 | V-0 | - | - | - | - | - | 50 | 50 | 50 | ||
| CS5600 | NC,BK | 0.53 | V-0 | - | - | - | - | - | 50 | 50 | 50 |
| GS5620 | ALL | 0.75 | V-0 | - | - | - | - | - | 50 | 50 | 50 |
